Interfaces and dimensions
State each end connection, nominal size, overall length, wall, angle or radius and critical tolerances.
Specification overview
Define the fitting before requesting price
The ranges below describe available options, not a blanket certification. Send the required grade, standard, dimensions and service conditions for technical confirmation.
| Angles | 45°, 90°, 180° |
|---|---|
| Size range | 1/2 in to 48 in |
| Wall thickness | SCH 10 to SCH 160 |
| Standards | ASME B16.9, DIN 2605, JIS B2311 |
| Materials | Carbon steel, stainless steel, alloy steel |
| Finish | Black paint, galvanized, anti-rust oil |
Information to include in your RFQ
Clear input reduces clarification time and quotation errors.
Product type and drawing
Material grade
Size and wall thickness
Standard and connection
Surface treatment
Quantity and destination port
Product gallery

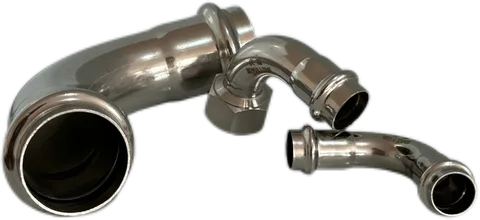

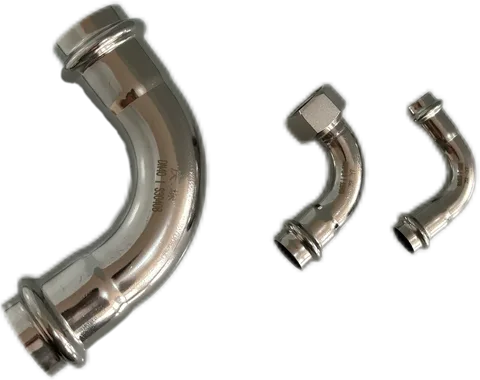

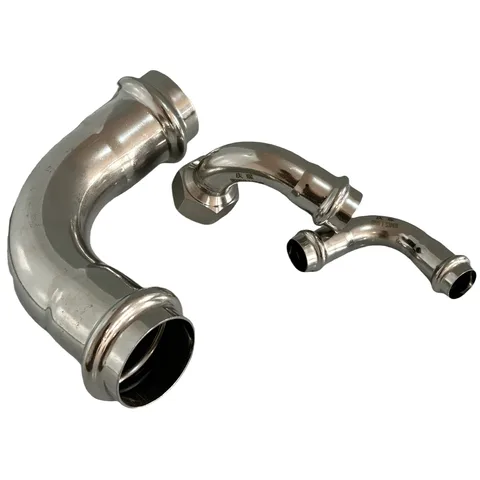

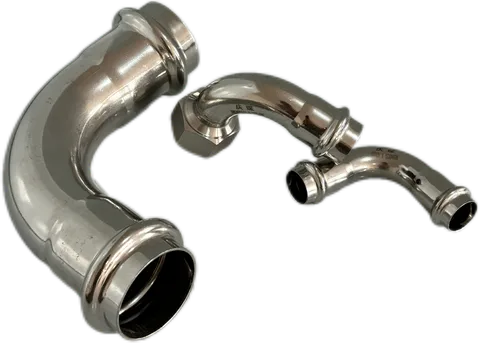

Steel Pipe Bends models and product photos
Browse 12 existing product photos. Model names and technical details are confirmed against your drawing and RFQ.
Model 1 6
Model 2 3
Model 3 3
Specifications to confirm when sourcing this fitting family
A product name alone does not define an interchangeable component. Use the drawing, mating part and service conditions to confirm the following items.
Material and surface
State material grade, product route, finish, cleanliness and protection requirements.
Inspection and delivery
Agree gauges, dimensional records, marking, packing, quantity and destination requirements.
