Specification overview
Define the fitting before requesting price
The ranges below describe available options, not a blanket certification. Send the required grade, standard, dimensions and service conditions for technical confirmation.
| Angles | 45°, 90°, 180° |
|---|---|
| Size range | 1/2 in to 48 in |
| Wall thickness | SCH 10 to XXS |
| Standards | ASME B16.9, DIN 2605, JIS B2312 |
| Materials | ASTM A234 WPB, A403 WP304/316, alloy steel |
| Radius | Long radius and short radius |
Information to include in your RFQ
Clear input reduces clarification time and quotation errors.
Product type and drawing
Material grade
Size and wall thickness
Standard and connection
Surface treatment
Quantity and destination port
Product gallery

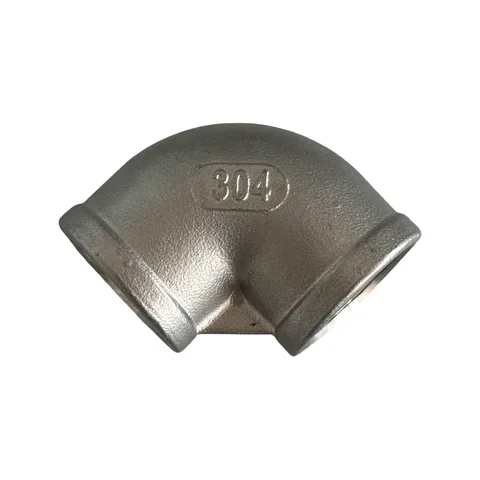

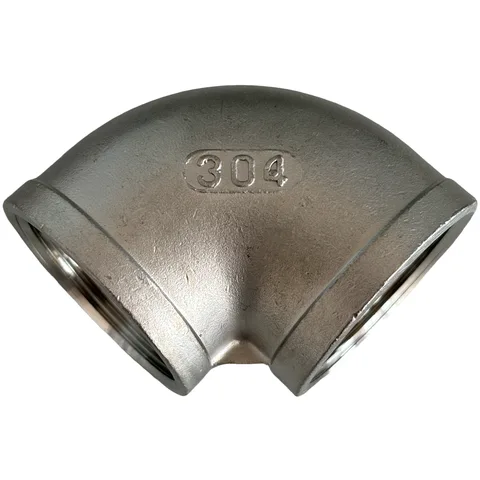

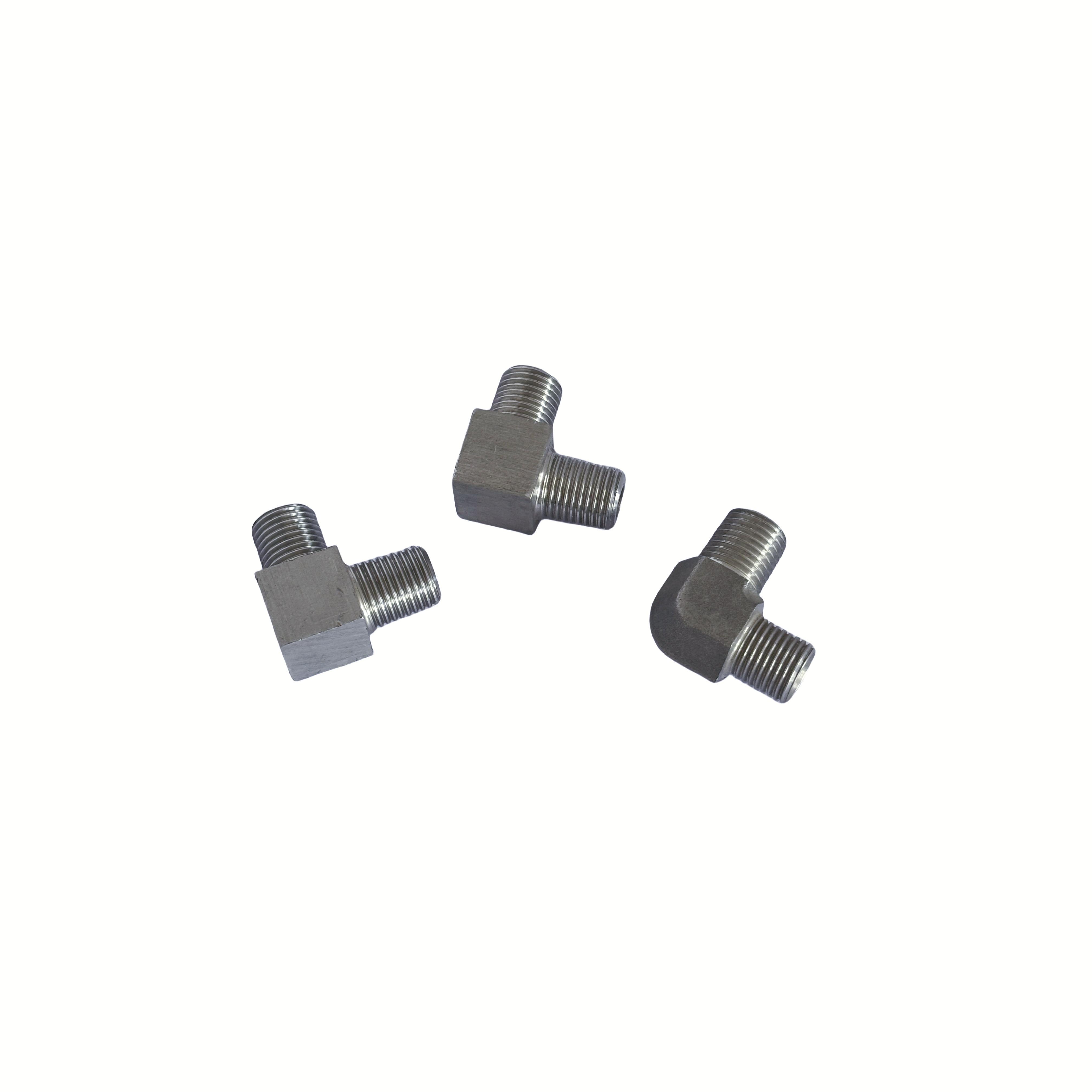

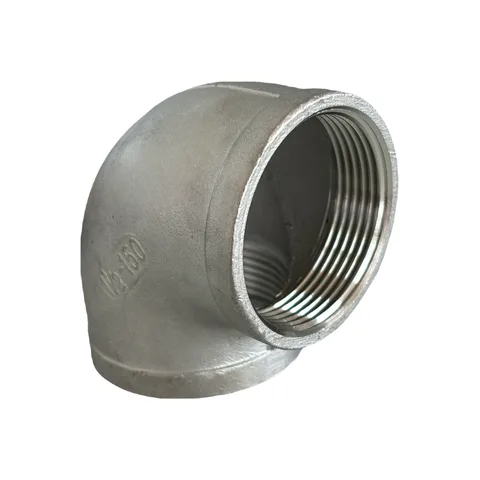

Pipe Elbows models and product photos
Browse 16 existing product photos. Model names and technical details are confirmed against your drawing and RFQ.
Model 1 3
Model 2 7
Model 3 2
Model 4 4
Buyer specification guide
Information to confirm before quotation
An elbow quotation should identify the angle, centerline radius, material, outside diameter, wall thickness and end preparation. These inputs determine the manufacturing and inspection route.
Configuration45 degree, 90 degree, 180 degree or drawing-specific angle
RadiusLong radius, short radius or stated centerline radius
MaterialRequired carbon steel grade and material documentation
DimensionsNominal size or outside diameter, wall schedule and tolerance
EndsBevel, threaded, socket or drawing-specific preparation
