Specification overview
Define the fitting before requesting price
The ranges below describe available options, not a blanket certification. Send the required grade, standard, dimensions and service conditions for technical confirmation.
| Size range | 1/8 in to 4 in |
|---|---|
| Thread options | NPT, BSPT, BSP, UNF |
| Materials | Carbon steel, stainless steel, brass |
| Patterns | Close, short, long, hex |
| Manufacturing | CNC machined or cut from pipe |
| Finish | Zinc plated, black, customer specified |
Information to include in your RFQ
Clear input reduces clarification time and quotation errors.
Product type and drawing
Material grade
Size and wall thickness
Standard and connection
Surface treatment
Quantity and destination port

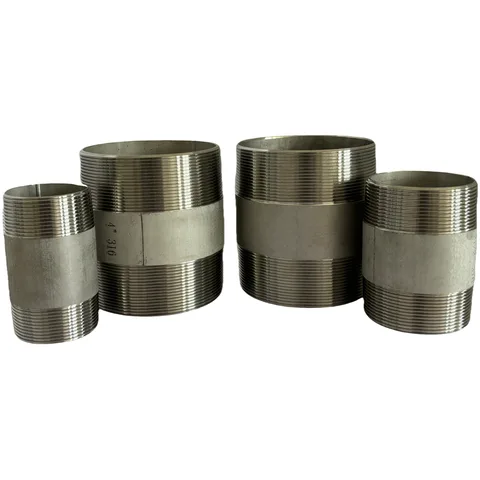

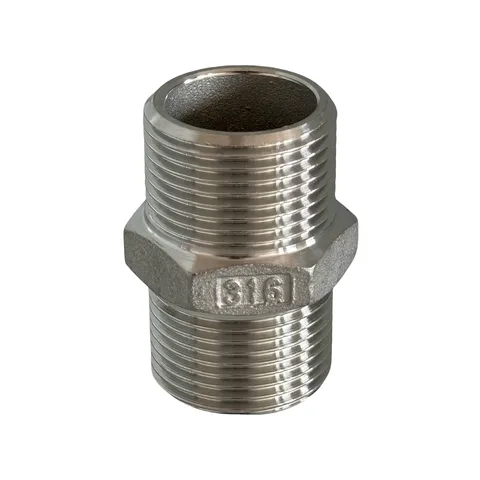

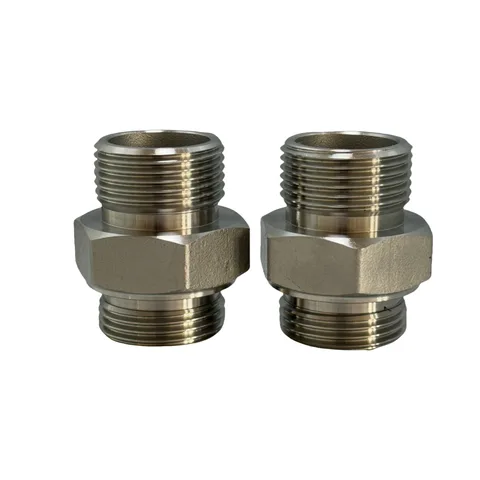

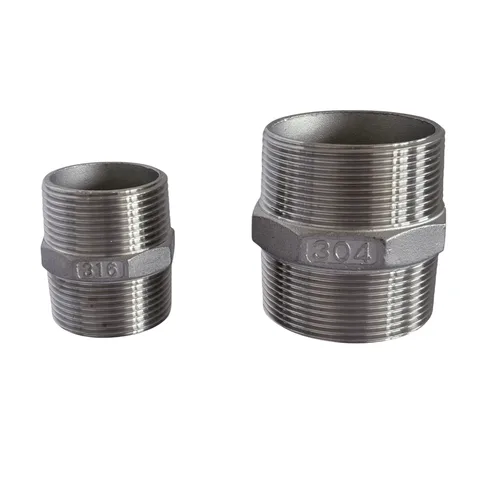

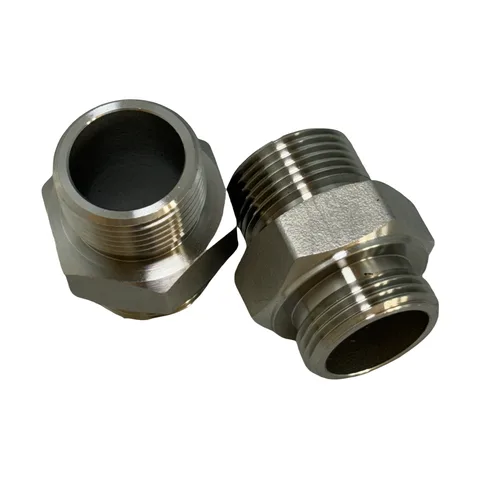

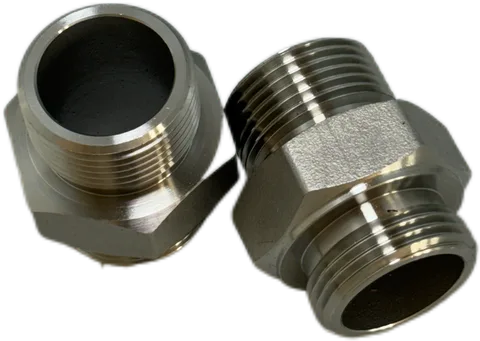

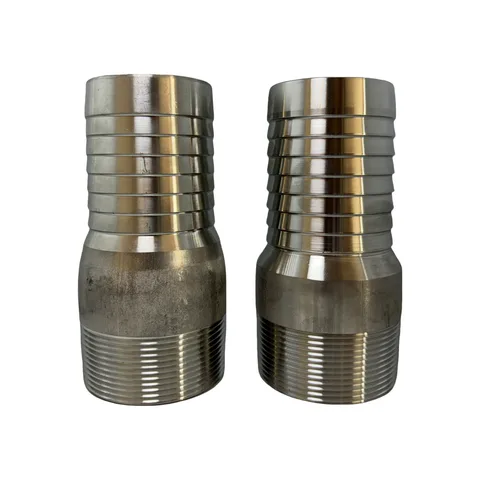

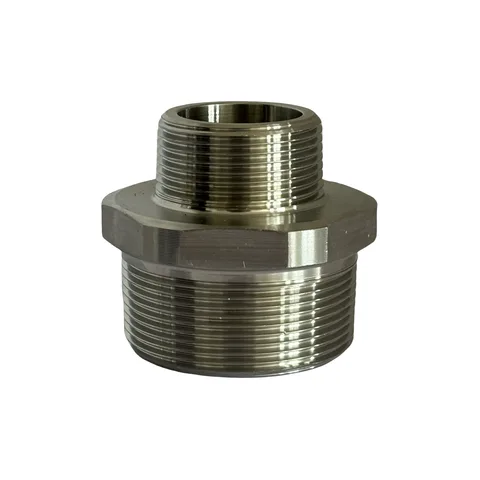

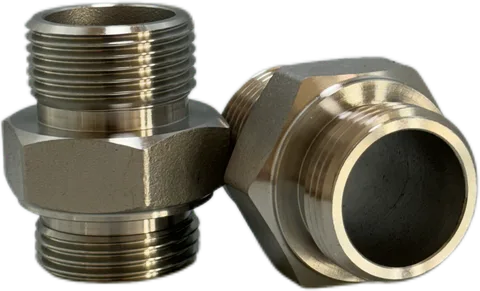

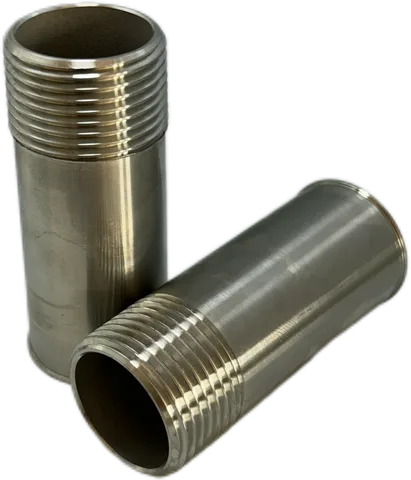

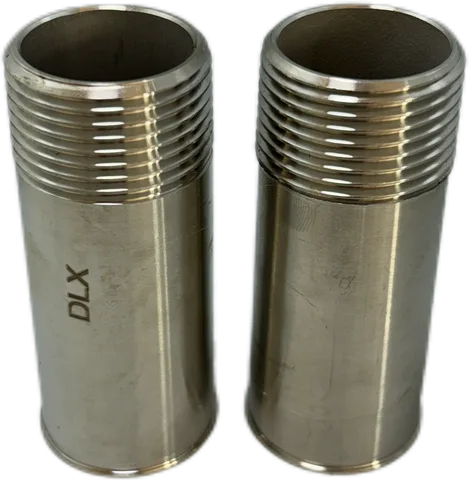

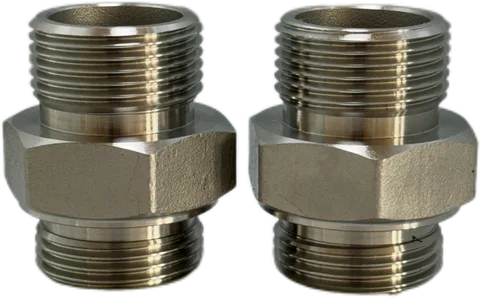

Product gallery
Pipe Nipples models and product photos
Browse 63 existing product photos. Model names and technical details are confirmed against your drawing and RFQ.
General Models 5
Model 10 6
Model 11 3
Model 1 7
Model 2 6
Model 3 4
Model 4 4
Model 5 4
Model 6 7
Model 7 3
Model 8 3
Model 9 2
hose 2
Other Models 7
Buyer specification guide
Information to confirm before quotation
Pipe nipples are specified by nominal size, cut length, wall schedule, thread form and finish. Clearly distinguish overall length from unthreaded center length in the drawing or RFQ.
FormClose, shoulder, hex, barrel or specified cut length
ThreadNPT, BSPT or referenced project thread
DimensionsNominal size, wall schedule and overall length
MaterialRequired pipe or bar material grade
FinishBlack, zinc-coated or project-specific finish
