Specification overview
Define the fitting before requesting price
The ranges below describe available options, not a blanket certification. Send the required grade, standard, dimensions and service conditions for technical confirmation.
| Size range | 1/2 in to 48 in |
|---|---|
| Wall thickness | SCH 10 to SCH 160 |
| Standards | ASME B16.9, DIN 2615, JIS B2313 |
| Materials | Carbon steel, stainless steel, alloy steel |
| Connections | Butt weld, threaded, socket weld |
| Types | Equal and reducing |
Information to include in your RFQ
Clear input reduces clarification time and quotation errors.
Product type and drawing
Material grade
Size and wall thickness
Standard and connection
Surface treatment
Quantity and destination port
Product gallery

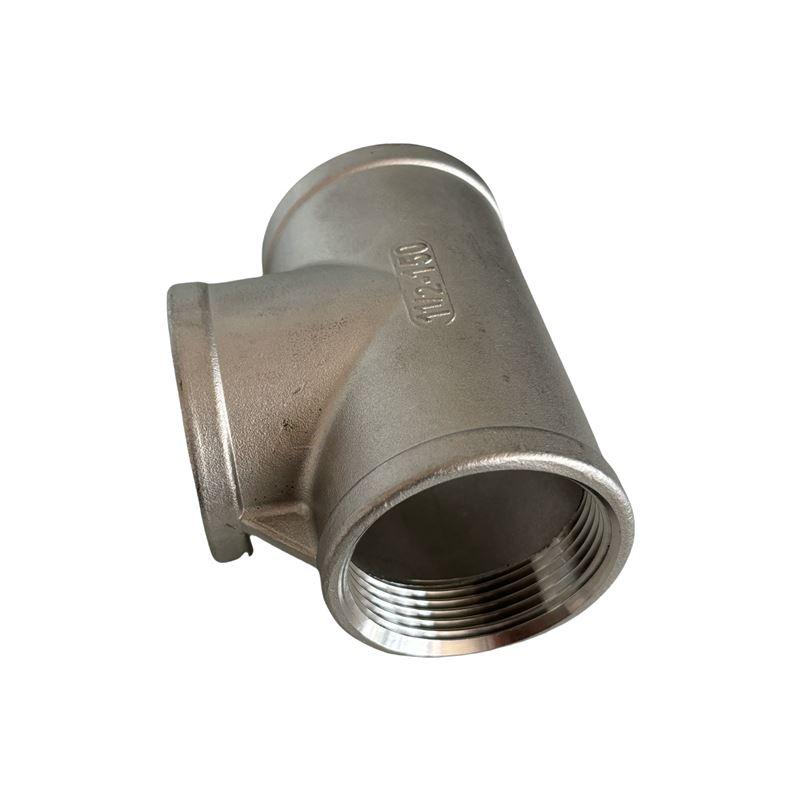

Pipe Tees models and product photos
Browse 4 existing product photos. Model names and technical details are confirmed against your drawing and RFQ.
Model 15 2
Model 1 2
Buyer specification guide
Information to confirm before quotation
A tee quotation must distinguish the run size from the branch size and identify whether the fitting is equal or reducing. Wall schedule and end preparation should be stated for every connection.
ConfigurationEqual tee, reducing tee or drawing-specific branch
DimensionsRun size, branch size, center-to-end dimensions and tolerances
WallSchedule or minimum wall requirement for run and branch
MaterialRequired carbon steel grade and documentation
EndsButt-weld, threaded, socket or specified preparation
